(Python Tkinter) Chapter 4. place - Geometry(Layout) Managers
PYTHON/tkinter

(Python Tkinter) Chapter 4. place - Geometry(Layout) Managers

2022. 7. 28. 14:34
728x90
반응형

"Life is too short, You need python"

Place Geometry Manager는 위젯을 특정 위치에 배치하는 방법이며 Tkinter에서 제공되는 세 가지 Geometry Manager 중 가장 단순하며 직관적입니다. (x, y) 좌표계를 사용하며 위치와 크기를 픽셀 단위로 지정하며 지정 위치에 위젯을 정확하게 배치할 수 있습니다.  또한 창의 크기를 조정해도 위젯의 크기와 위치는 변경되지 않습니다. Place를 사용하여 창에 위젯을 배치하는 방법에 대해 알아보겠습니다.






place ( 좌표 위치 배치 )



place는 (x, y) 좌표계에 따라 지정된(절대 or 상대) 위치에 위젯을 배치합니다.



(x, y) 좌표에 따라 배치






Syntax



widget.place(option parameters)



  • 우선 순위는 가장 처음 선언한 place 부터 배치 됩니다.
  • place 의 x =, y = 옵션은 단위가 픽셀이며 위젯의 절대 위치 입니다.

      → button_1.place(x = 20, y = 20)는 button_1이 (20, 20)의 좌표에 배치됨을 의미 합니다.

      → 크기를 조정할 수 있습니다.

  • 상대 위치가 있는 창에 다른 위젯이 있는 경우 창 확대 / 축소 시 다른 위젯과 겹칠 수 있습니다.
  • place는 pack / place와 함께 사용할 수 있습니다.





( Input )



import tkinter as tk

root = tk.Tk()
root.title('PY Life')
root.geometry("500x400")

Button_1 = tk.Button(root, text = '(50, 50)', bg = 'green')
Button_2 = tk.Button(root, text = '(50, 100)', bg = 'red')
Button_3 = tk.Button(root, text = '(100, 150)', bg = 'blue')
Button_4 = tk.Button(root, text = '(100, 200)', bg = 'gray')
Button_5 = tk.Button(root, text = '(0, 300)', bg = 'yellow')
Button_6 = tk.Button(root, text = '(100, 300)', bg = 'pink')

Button_1.place(x = 50, y = 50)
Button_2.place(x = 50, y = 100)
Button_3.place(x = 100, y = 150)
Button_4.place(x = 100, y = 200)
Button_5.place(x = 0, y = 250)
Button_6.place(x = 0, y = 300)

root.mainloop()

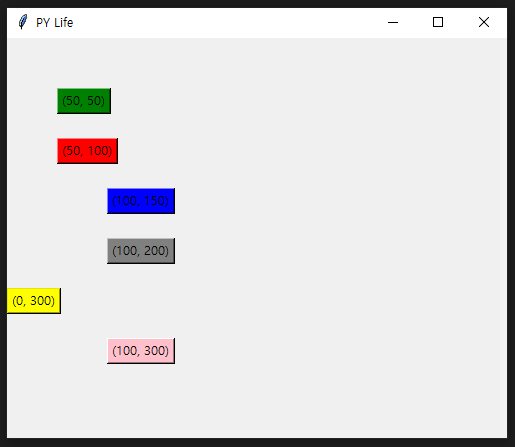

( Output )





별다른 옵션이 없다면 위의 그림과 같이 출력이 됩니다.






Option Parameters



place()에 옵션을 추가해야 원하는 형태로 배치가 가능하며 가능한 옵션은 다음과 같습니다.



이름
의미 기본값 속성
x x좌표 배치 0 상수(pixel 단위)
y y좌표 배치 0 상수(pixel 단위)
relx x좌표 배치 비율(상위 위젯 기준) 0 0 ~ 1
rely y좌표 배치 비율(상위 위젯 기준) 0 0 ~ 1
width 위젯의 너비 0 상수(pixel 단위)
height 위젯의 높이 0 상수(pixel 단위)
relwidth 위젯의 너비 비율(상위 위젯 기준) 0 0 ~ 1 (0 ~ 100%)
relheight 위젯의 높이 비율(상위 위젯 기준) 0 0 ~ 1 (0 ~ 100%)
anchor 위젯의 기준 위치 nw n, s, e, w, nw, ne, es, ws, ns, ew, news
bordermode 상위 위젯의 테두리 참조






Option 1 . x / y / relx / rely / width / height / relwidth / relheight



place()는 (x, y), (relx, rely)로 좌표를 받아 위젯를 배치하고, width / height, relwidth / relheight로 크기를 조정합니다.

  • x = (pixel), y = (pixel) : 해당 좌표에 위젯을 배치합니다.
  • relx = (비율), rely = (비율) : 비율은 0 ~ 1 사이 값으로 상위 위젯 사이즈를 기준으로 합니다.
  • width = (pixel), height = (pixel) : 주어진 Pixel 값에 따라 사이즈를 결정합니다.
  • relwidth = (비율), width = (비율) : 비율은 0 ~ 1 사이 값으로 상위 위젯 사이즈를 기준으로 합니다.



아래의 예시를 통해 사용 방법을 확인해 보도록 하겠습니다.





( Input )



import tkinter as tk

root = tk.Tk()
root.title('PY Life')
root.geometry("600x500")

Button_1 = tk.Button(root, text = '100px, 200px', bg = 'yellow')
Button_2 = tk.Button(root, text = '200px, 50px / 200px_width', bg = 'green')
Button_3 = tk.Button(root, text = '250px, 100px / 40px_height', bg = 'red')
Button_4 = tk.Button(root, text = '350px, 200px / 50px high', bg = 'purple')
Button_5 = tk.Button(root, text = '350px, 300px / 200px width', bg = 'orange')
Button_6 = tk.Button(root, text = '100px, 300px / relw 0.4, relh 0.2', bg = 'pink')
Button_7 = tk.Button(root, text = '0, 0 / Relh 0.6', bg = 'cyan')
Button_8 = tk.Button(root, text = '150px, 0 / Relw 0.2', bg = 'royalblue')
Button_9 = tk.Button(root, text = 'Relx 0.7, 0', bg = 'beige')
Button_10 = tk.Button(root, text = '0, Rely 0.8', bg = 'brown')

Button_1.place(x = 100, y = 200)
Button_2.place(x = 200, y = 50, width = 200)
Button_3.place(x = 250, y = 100, height = 40)
Button_4.place(x = 350, y = 200, height = 50)
Button_5.place(x = 350, y = 300, width = 200)
Button_6.place(x = 100, y = 300, relwidth = 0.4, relheight = 0.2)
Button_7.place(relheight = 0.6)
Button_8.place(x = 150, relwidth = 0.4)
Button_9.place(relx = 0.7)
Button_10.place(rely = 0.8)

root.mainloop()

각 셀별 Color를 추가하고 구분 하였습니다.

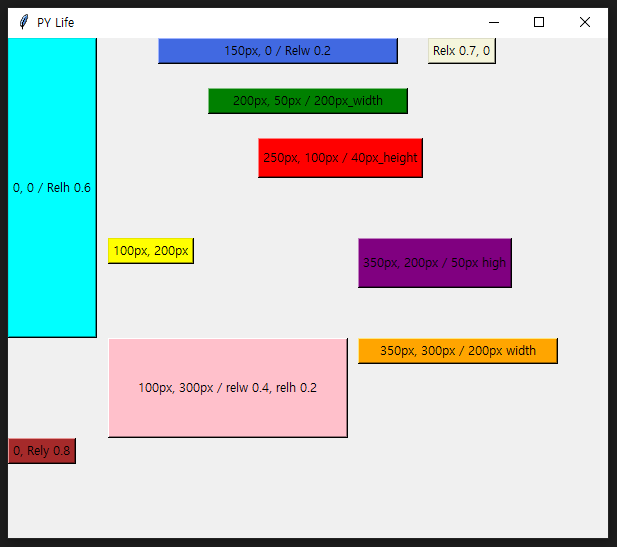

( Output )

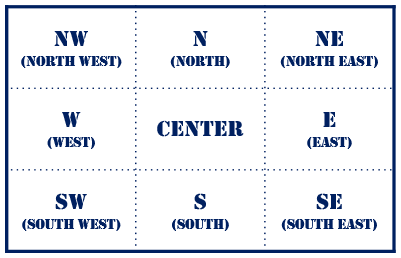

Option 2. anchor



anchor는 (x, y) 좌표가 위젯의 어디에 위치할 것인지





( Input )



Button_1 = tk.Button(root, text = 'nw', bg = 'yellow')
Button_2 = tk.Button(root, text = 'ne', bg = 'blue')
Button_3 = tk.Button(root, text = 'sw', bg = 'purple')
Button_4 = tk.Button(root, text = 'se', bg = 'cyan')

Button_1.place(x = 200, y = 200, anchor = 'nw')
Button_2.place(x = 200, y = 200, anchor = 'ne')
Button_3.place(x = 200, y = 200, anchor = 'sw')
Button_4.place(x = 200, y = 200, anchor = 'se')

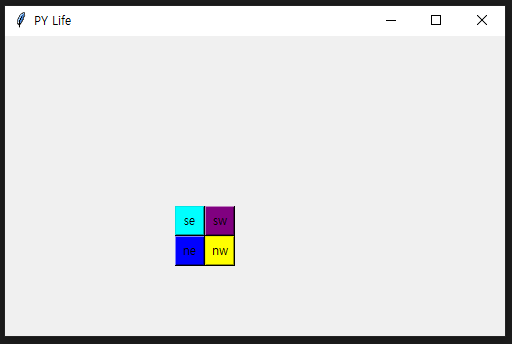

( Output )








마무리



Geometry Manager 중 place 사용법에 대해 알아보았습니다.
